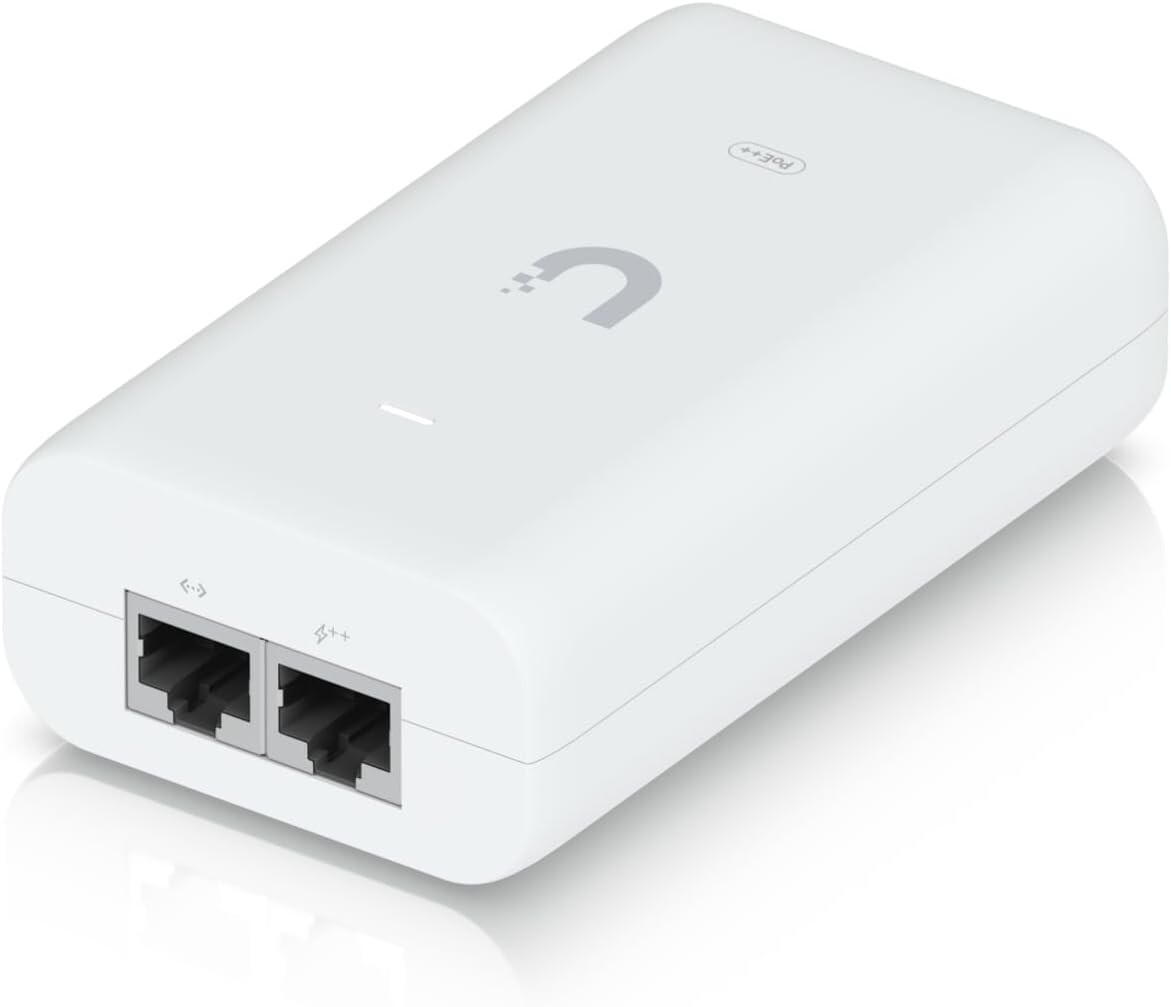

The UniFi PoE++ Adapter delivers reliable power to compatible PoE devices from Ubiquiti Networks, supporting up to 60W of output. Built-in protections against surges, peak pulses, and overcurrent help ensure uninterrupted operation of your connected equipment. Designed for use with Ubiquiti Networks PoE-enabled devices Offers surge, peak pulse, clamping, and overcurrent protection Features shielded RJ45 ports for enhanced durability Includes an LED status indicator for easy monitoring Compatibility UVC-G4-PTZ, UA-G2-SK-Pro, UA-Hub, UA-G2-SK, U6-Enterprise-IW, UC-Display, UA-SK-Elevator, USW-Ultra (42W), USW-Flex (46W) Technical Specifications Dimensions 106 x 63 x 34 mm (4.2 x 2.5 x 1.3") Weight 210 g (7.4 oz) Output voltage 48V DC @ 1.25A LAN activity indicator No Gigabit LAN port Yes Remote reset capability No Reset button No Rated voltage 100?240V AC @ 50/60Hz Input current 1.3A @ 120V AC 0.75A @ 230V AC Inrush current 100A peak @ 120V AC 200A peak @ 230V AC Efficiency 85+% Output ripple 1% max. Switching frequency 65 kHz Line regulation ? 1% Load regulation ? 3% 2-pair powering No 4-pair powering Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) AC connector IEC-320 C6 Data In / PoE RJ45 shielded socket Surge protection Difference and common mode Clamping protection 11V data, 60V power Max. surge discharge 1500A (8/20 ?s) power Peak pulse current 36A (10/1000 ?s) data Shunt capacitance 5 pF data Response time 1 ns Power method Universal AC input, 100?240V AC, 50/60 Hz Power supply AC/DC Supported voltage range 100?240V AC Max. PoE+ wattage per port by PSE 60W Ambient operating temperature 0 to 40 C (32 to 104 F) Storage temperature -30 to 70C (-22 to 158 F) Ambient operating humidity 10 to 95% noncondensing Certifications CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS NDAA Compliant Yes
