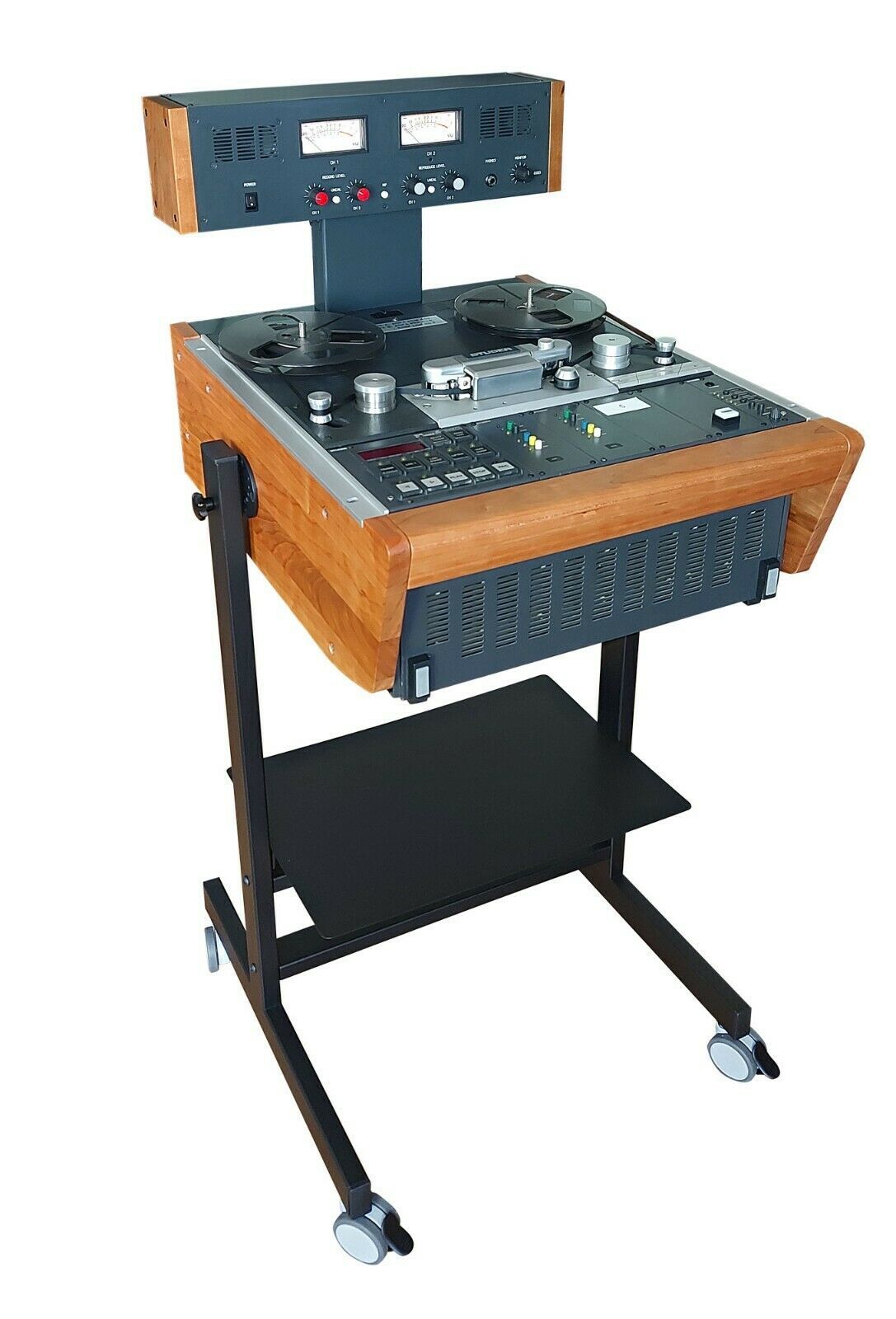

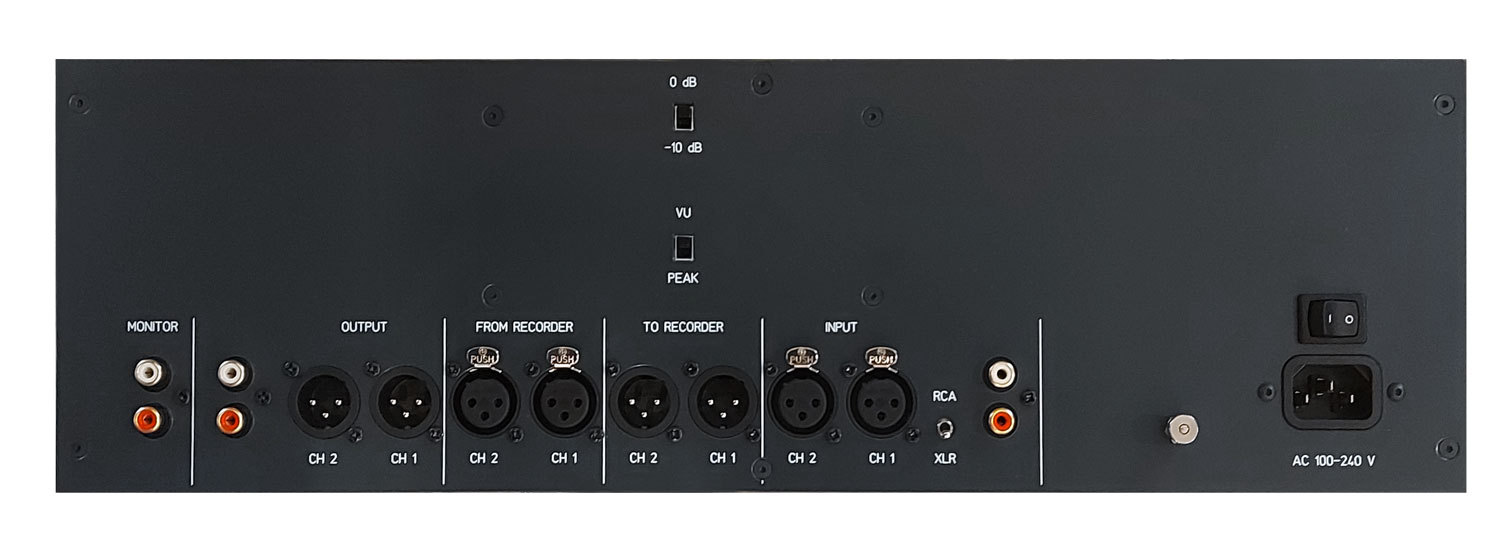

NEW Custom Made Cart Stand with Meter Bridge for Studer HEAVY DUTY, HIGH QUALITY, HAND CRAFTED, WITH STAND ASSEMBLY A-807 A-810 A-812 A-820 A-827 B-67 etc Reel to Reel Recorders Description: Stand This is a New Custom Made Cart Stand (machine is NOT part of the sale and for display purposes only). Hand crafted, can be easy assembled or disassembled. Made of durable 2.0 steel tubing - it can bare a load of more than 200 kg. Very durable and stable - T-bars are welded and bolted together with crossbars with 8mm bolts. Powder coated in the tone of "Studer Grey" (colour code RAL 7016) Side panels and rest bar are made from exotic hardwood african padauk. It has deep redish-orange colour which becomes slightly darker with time. Wheels are by France by leading manufacturer TENTE. The shelf for amplifiers can be removed - please see the pictures. The recorder is NOT part of the sale and for display purposes only. IMPORTANT! When purchasing, please note the estimated delivery time in the section Delivery: Meter Bridge This 3U VU unit is suitable to any Studer Reel to Reel machine - or any other recorder - which comes without VU meters to enable control and monitor of recording and playback levels. Ensures calibrated and un-calibrated level control modes of recording and playback. VU meters can be switched between normal and "peak" modes with a simple push of a switch. In "peak mode" ballistics of VU meters are adjusted to show peak values of recording/playback. The VU meter indicator circuitry is a modified replica of the Studer A810 (also A812, A816) including a switchable standard VU meter mode and a peak program meter (PPM) mode. In addition, there is a switch to increase the sensitivity by 10dB. -10 VU mode is also useful when calibrating the recorder with a test tape where tones are recorded at a level of -10 dB below nominal and you do not have external audio frequency VU meter. Our Mark 5 version has built in oscillator - generator of 1khHz and 10kHz sinus test tones for testing and calibration. Linear power supply available as option. Unit's "0" value for VU meters is calibrated to "normal" Studer (studio standard) level - +4dB. "0" level can be adjusted to other values - if you want so. All parts are top quality, schematics used are from top manufacturers. Operational Amplifiers are exchangeable - mounted in sockets. We use Texas Instruments INA137PA, DRV134PA. In the input and output sections are additional RCA sockets. You can connect signal source which does not have XLR sockets. Bracket of the meter bridge attaches to the existing attachment points (screw holes) of the recorder. This meter bridge does not require special side panels. Meter Bridge can be used either with original Studer stand or without stand - as a table top version. Connection wires can be hidden in the vertical post of the bridge. Connection to the signal source can be done either with RCA or XLR connecting wires. We provide WORLDWIDE shipping with TRACKING NUMBER. Specifications Analogue inputs (unbalanced) RCA pin jacks Nominal input level -10 dBV (0.316 Vrms) Maximum input level +10 dBV (3.16 Vrms) Input impedance 50 kOhm Analogue inputs (balanced) XLR-3 (1: GND, 2: HOT, 3:COLD) Nominal input level +4 dBu (1.23 Vrms) Max increase of the input sensitivity (UNCAL) 15 dB Maximum input level +24 dBu (12.3 Vrms) Differencial input impedance 24 kOhm Analogue outputs (unbalaced) RCA pin jacks Nominal output level -2 dBu (0.615 Vrms) Maximum output level +18 dBu (6.15 Vrms) Output impedance 100 Ohm Analogue outputs (balanced) XLR-3 (1: GND, 2: HOT, 3:COLD) Nominal output level +4 dBu (1.23 vrms) Max increase of the output gain (UNCAL) 15 dB Maximum output level +24 dBu (12.3 Vrms) Output impedance 100 Ohm Audio performance Frequency response 10 Hz ? 50 kHz, 0.1 dB Distortion (THD) -105 dB or less Distortion Plus Noise (THD + N) -90 dB or less Test generator Frequency 1 kHz 10 kHz 1% Distortion (THD) -40 dB Power supply and other specifications Impulse power supply AC 100?240 V, 50/60 Hz Linear power supply AC 220-230V, 50/60 Hz Power consumption 10 W Dimension (W x H x D) 440 mm x 132 mm x 130 mm Weight 2.7 kg Please allow two weeks for manufacturing. It is possible to order different wheels, stand color and bar diameter - please contact us if interested! Write if you have any other questions - we can make any cart stand and dust cover for your specs! Internal block diagram Connection example Measurements About Us We are proffesional suppliers of Reel-to-Reel equipment, reels and services. Shipping SHIPPING COSTS (approximate - please contact us before purchase) Shipping to US: 160USD (FedEx) Shipping outside Europe: 160USD (DHL) Shipping within Europe: 75USD (UPS) We provide shipping discounts - please contact us before bidding. We ship within 24 hours after received cleared payment (except for weekends and holidays). See the shipping statistics below: If you do not receive your item within 30 days, please contact us to resolve the issue before leaving a negative feedback. International Buyers ? Please Note: Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying. Payment We accept PayPal only, as it is the safest and easiest payment method. Payment must be received within 48 hours after purchase. If for any reason you cannot use PayPal, please contact us about additional payment methods before bidding. Contact Us j_dcx Reel-to-Reel services Description About Us Shipping Contact
