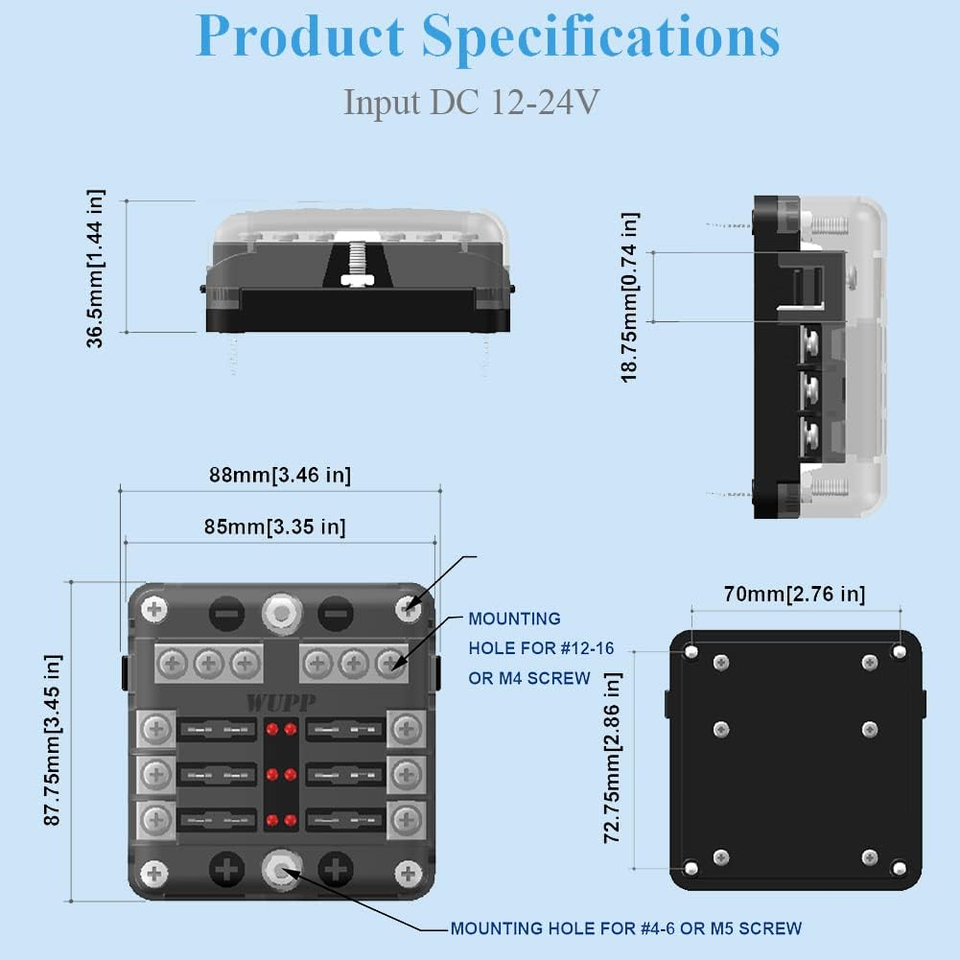

Store New Arrivals Add to Favorite View Feedback Contact 12 Volt Fuse Block, Waterproof Boat Fuse Panel with LED Warning Indicator Damp-Proof Cover, 6 Circuits with Negative Bus Fuse Box for Car Marine RV Truck DC 12-24V Description Item model number CS-664A1 Current Rating 3E+1 Amps Upper Temperature Rating 1.5E+2 Degrees Celsius Country of Origin China Special Features fuses Included, fuse box with negative bus Bulb Type Red LED warning indicator Material nickel-plated copper connection terminal, Polybutylene Terephthalate (PBT), Polycarbonate (PC) Manufacturer Part Number CS-664A1 Number of Positions 6 Is Discontinued By Manufacturer No Connector Type Screw Item Weight 7.4 ounces Model CS-664A1 Number Of Contacts 6 Number Of Poles 6 Mounting Type Panel Mount Color Screw Terminal Voltage 12 Volts Product Dimensions 3.35"W x 1.44"H Size 6-circ W/Cover Neg QUICK FIX: When the current or voltage exceeds the rated limits, the fuse will automatically blow. Each load is equipped with an LED indicator to signal whether a circuit has shorted or if the fuse has blown, allowing for easy identification and replacement. However, it is important to note that there may still be voltage present across the circuit even in the absence of a fuse; this occurs because the fuse box contains its own lighting circuit, which introduces resistance and consequently displays some voltage. ENSURE NEAT WIRING: Rather than cluttering your battery terminals with a tangle of wires and fuse holders, the WUPP 12-volt fuse block and ground bus kit provides six dedicated fuses and six grounding points to maintain an organized, clean, and easily accessible wiring system. This simplifies the process of wiring electronics in your vehicle or boat. UNIVERSAL PROTECTION: The input rated voltage of the fuse box is 32V,and the input rated current is 100A.Each circuit outputs a maximum current of 30A. All bus bars and fuse pieces are nickel-plated copper, corrosion-resistant and highly conductive. SAFE MATERIAL: PBT flame retardant material base,good mechanical strength and high temperature resistance. It is insulated, heat resistant and flame resistant. There will hardly cause any issue like produce fracture, deformation, combustion or short circuit phenomenon. FREE BLADE FUSES: 6-Way Package includes: 20A Fuse*4, 15A Fuse*4, 10A Fuse*2, 5A Fuse*2, Labels*2, Screws*4 Product Description WUPP Fuse Block, Make Your Wiring Clean Simple All automotive electrical projects need to be properly protected: that means each and every circuit. WUPP 12 volt fuse blocks are an effective method of protection to prevent damage to wiring and possible fire in the event of an over-loaded or short circuit. This WUPP space-saving fuse block can provide protection for new installations or when the panel has run out of breakers. Please Keep in Notice: The advantage of our fuse block is that it has an indicator light, so when the fuse is blown, the indicator light will light up immediately to show you which fuse is blown. But you may get voltage across the circuit even with no fuse in place, that's because the fuse box has its own light circuit, the light circuit has resistance, so it displays some voltage. So if you are extremely power-sensitive, be aware, this is the normal situation, please don't worry. Thanks for your understanding. SPECIFICATIONS Input Voltage 12-24V DC Max Current 100A per block/ 30A per circuit Quantity of Fuse Slots 6 Main Line Terminal M5 threaded stud Main Wire ?4-6 Single Wire Terminal M4 threaded stud Single Wire #12-16 Product Dimensions 87.75*85*36.5mm Fuse Type Standard(ATC or ATO) Max Voltage 32V Type Fuse Blocks Working temperature -40 ? ~ 85 ? WUPP 6 Way Blade Fuse Block Clip-Lock Protection Cover Input Voltage: 12V-24V DC Input / Output Current: 100A / 30A max. per circuit PBT base + PC waterproof and dustproof cover + Nickel plated copper connection terminal Tin-plated copper for corrosion resistance optimal electrical conductivity PACKAGE CONTENTS 1 x 6 Circuit Fuse Block w/ Neg Bus 2 x 5A orange fuse pieces 2 x 10A red fuse pieces 4 x 15A blue fuse pieces 4 x 20A yellow fuse pieces 2 x sticker 4 x screws MAIN FEATURES QUICK FIX WUPP 12 Volt fuse block will indicate exactly where there is a short circuit or any other fault allowing you easily identify and replace blown fuses immediately without guessing! MAKE WIRING CLEAN This marine fuse block gives you 6 dedicated fuses and 6 ground locations to keep all of your wires clean, organized, and accessible. Widely Applicable This WUPP fuse block can be widely used in cars, boats, trucks, modified cars, subways, airplanes, RVs, buses, golf carts, ships, etc. Good Quality Flat Fuse ABOUT US We offer the best prices around on high quality products. Our E-store includes media such as books, movies, music and games while offering electronics, toys, sporting apparel, clothing, tools, general home, garden items and more. SHIPPING We are always working hard to ensure your package arrives as soon as possible. Please understand that some factors like weather, high postal traffic, and the performance of shipping companies are outside of our control. We offer free shipping to the lower 48 states and ship within 2 business days of payment, usually sooner. We do not accept P.O. Boxes. Please provide a physical address. For shipping outside of the continental USA, we only use's Global Shipping Program.The item is shipped to KY and then sent to the rest of the world. International customers are responsible for all duties and taxes. Continue to check out in order to calculate costs for shipping the item to your country. Messages regarding's Global Shipping Program MUST be directed at EXCLUSIVELY. RETURNS We offer a 30-Day Return Policy on items which you are not completely satisfied with. You have the option for a full-refund or an exchange of the item. No returns are available on items shipped outside of the USA. PAYMENT We accept PayPal. CONTACT US This page content is yet to come Please ad us to your favorite seller and visit again later Thank You CUSTOMER SATISFACTION We try our very best to make sure every customer is completely satisfied. If there's a problem, message us! We're happy to help. WE ACCEPT Copyright 2021 AutoDS. | All Rights Reserved
